Description

RAIL SAW HYDRAULIC

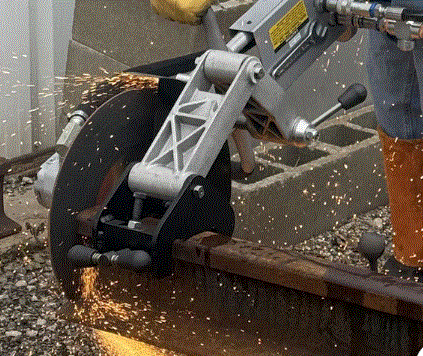

HS16 Hydraulic Rail Saw is designed for the serious rail crew looking to minimize down time and increase efficiency. Ease of operation and a reversible motor so you can cut from both sides of the rail. Now includes an adjustable blade guard.

Model HS16 Features:

• Longer frame for better operator comfort
• Arbor support bearing
• Ergonomic handles with vibration reducing grips
• Reversible motor
• Adjustable blade guard
• Hose guards for operator safety
• Operator height adjustable clamp
• Minimal maintenance
• Two year warranty

HS16 SPECIFICATIONS
Motor…………………………. Hydraulic
RPM (no load)……………… 3400
Wheel ………………………… 16″ (406mm)
Arbor …………………………. 1″ (25mm)
Flow (max) ………………… 10 GPM / 38 LPM
Pressure (max) ………….. 2000 PSI / 138 Bar
Dimensions*………………. 43-1/2″ L x 17″ H x 9″ W
Weight Saw ………………. 41 lbs (18.6 kg)
Clamp ………………………. 20 lbs (9 kg)
