CEMBRE PORTABLE TIE DRILL AND TROLLEY

Part Number: N/A Category:

Call for Price 513-533-7070

CEMBRE PORTABLE TIE DRILL

Clear

Description

Accelerator lever fitted with safety switch, to prevent accidental operation.

Fitted with a centrifugal clutch; with the engine running at ‘tick over’ speed the drill bit is stationary. The accelerator controls the rotation of the drill bit.

Shock absorbers fitted between the drive shaft and spindle, reduce the transmission of machine vibrations to the operator.

Handle will rotate through 90o for operator comfort.

Emergency lever for the immediate release of the drill bit.

Carrying handle. Also used for locating the drilling machine into the Tie Drill Trolley (RRT-998).

Depth Gauge; easy to operate, using the graduated scale, for adjusting the depth of drilled hole.

Safety guard: providing effective, total protection of the drill bit. Spring loaded to guarantee the retraction of the drill bit from the sleeper, on completion of the drilling operation. Therefore minimizing operator effort.

Interchangeable, Guard Nozzle, for locating into chairs and base plates, as commonly used on existing tracks.

OPERATION

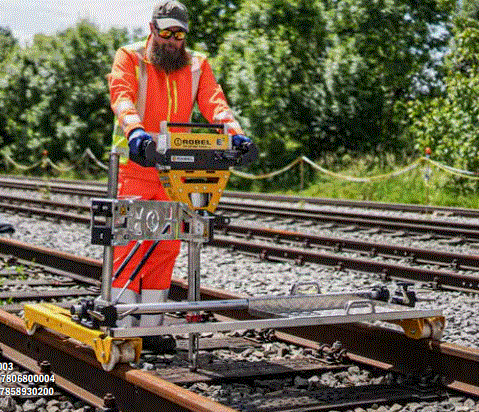

This new, patented unit has been designed and developed by Cembre, to provide optimum safety, when using both the Tie Drill independently and with the machine fitted onto the trolley.

Compact and lightweight, the unit can be positioned and operated by a single person. The unit can quickly and easily be removed from the track. The unit enables vertical holes to be drilled quickly and efficiently. If required, the angle of the Spindle Axis can be adjusted up to 5o.

Drill only with Steel case

Unit weight 39 lbs

*CALL TODAY FOR AUGERS AND ACCESSORIES*

Additional information

OPTIONS

TIE DRILL, TIE DRILL WITH TROLLEY, TROLLEY ONLY
